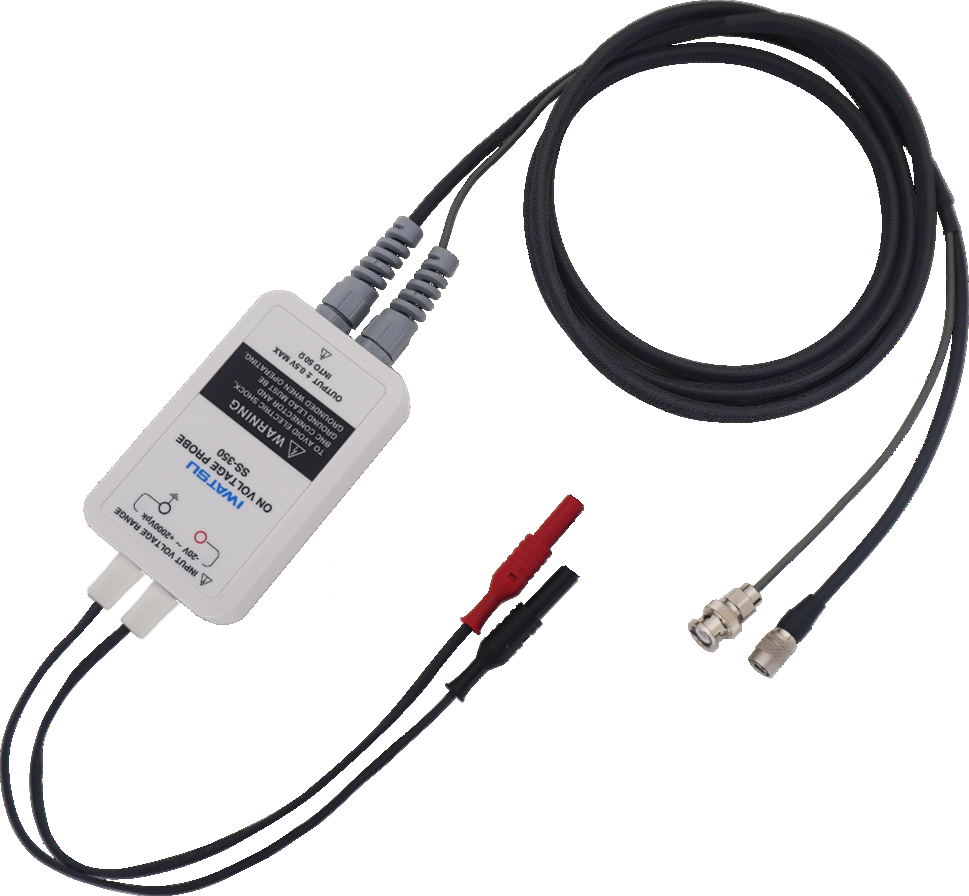

Model：iwatsu ss-350 Country of Origin：Japan
Category：Dynamic On-Resistance Rds(on)dynamic
High-precision measurement of the on-state voltage at the onset of GaN device switching, particularly suited to evaluating low on-resistance GaN devices.
With high stability, multiple ranges, and high-precision clamping capability, it enables mohm-level dynamic on-resistance measurement while maintaining extremely high withstand voltage. For research on current collapse in GaN, the SS-350 is one of the best measurement solutions of its kind worldwide.
■ Maximum input voltage: +2,000 Vpeak
■ Clamp voltage: +1.5 V / +2.5 V / +5.5 V
■ Clamp voltage and offset voltage can be set and supplied via our DS-8000 series oscilloscopes
*This product is compatible with our oscilloscopes — DS-8000 series only.
● Evaluating temperature dependence of on-resistance in SiC devices
● Evaluating conduction resistance trends caused by current degradation in GaN HEMT devices
● Detection of Vcesat on-state voltage rise caused by abnormal heating
● Measurement of on-state voltage increase under overcurrent conditions
| Signal input section | |
|---|---|
| Connectors | Φ4 mm banana plug -- optional BMF-002 MMCX adapter |
| Input range | -20 Vpeak to +2,000 Vpeak |
| Cable length | 30 cm |
| Clamping voltage | +1.5 V / +2.5 V / +5.5 V |
| Signal output section | |
| Connector | BNC |
| Output impedance | 50 Ω ±1% |
| Cable length | 2 m |
| Attenuation ratio | 5:1 (50 Ω output terminal) |
| Output voltage | · Clamp voltage ±1.5 V: select for signal amplitude 0 V to +1.0 V (output voltage 0 V to +0.2 V) · Clamp voltage ±2.5 V: select for signal amplitude 0 V to +2.0 V (output voltage 0 V to +0.4 V) · Clamp voltage ±5.5 V: select for signal amplitude 0 V to +5.0 V (output voltage 0 V to +1 V) |
| Offset adjustment | ±0.4 V or higher, variable offset |
| Probe power connector | |
| Connector | 6-pin |
| Cable length | 2 m |
| Power supply | Powered from the probe power terminal of the IWATSU DS-8000 series oscilloscope |
| Probe control | The DS-8000 series can set the fixture voltage and offset voltage |
*The DS-8000 series can be used if the following conditions are met.
· Software version 7.1 or later
· FE1 version 1 or later for 4-channel models; FE1 version 1 or later, and FE1 and FE2 version 1 or later for 8-channel models
| Dimensions | 60 (W) × 28 (H) × 115 (D) mm (excluding protrusions) |
|---|---|
| Weight | Approx. 350 g |
| Guaranteed operating temperature | +10°C to +35°C |
|---|---|
| Operating temperature | 0°C to +40°C |
Example on-voltage characteristics at turn-on of a GaN device
● Probing example ● On-voltage variation
