IWATSU SY-5001A高频双极性功率放大器 SY-8264 专用配套

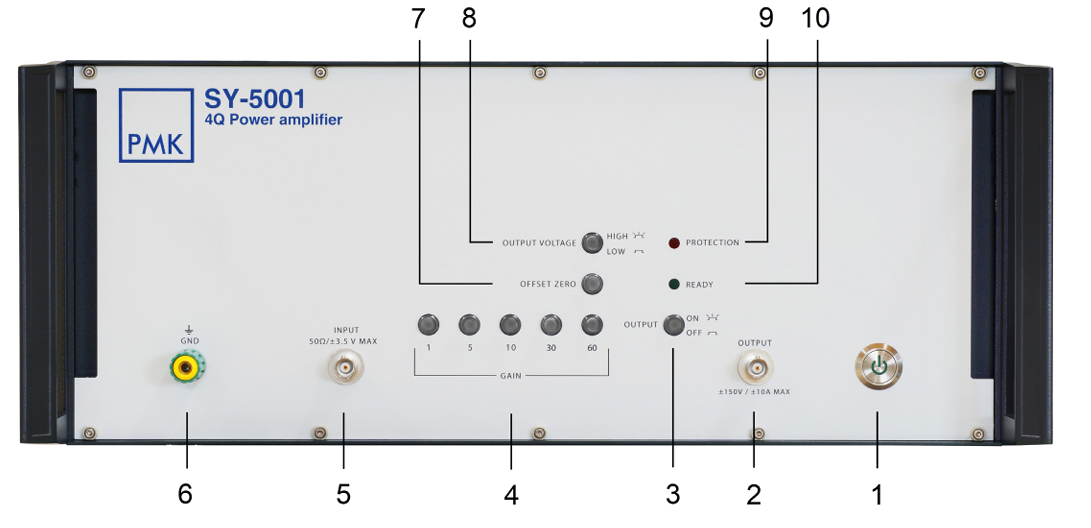

[1]:  ON / STANDBY Switch to turn the amplifier from standby to „ON“. Switch to standby with output off [3] only.

[2]:  OUTPUT Power connector for output (±150V / ±10A max.). In „OFF“ state the output is switched to signal ground.

[3]:  OUTPUT Switch to turn the output „ON“ or „OFF“. The switch lights up when the amplifier is  switched on.

 [4]:  GAIN The gain switches are used to adjust the overall gain of the amplifier. The LED of the selected amplifi-                 cation factor lights up permanently. Changing the gain triggers an automatic offset adjustment.

 [5]:  INPUT Signal input (±3V input voltage range), input impedance 50Ω, BNC.

[6]:  GROUND SOCKET Protective earth connection.

[7]:  OFFSET ZERO Switch to trigger, an DC offset adjustment. Lights up permanently after successful offset     adjustment, flashes at approx. 1 Hz in the event of an error during the offset adjustment.

 [8]:  OUTPUT VOLTAGE HIGH / LOW Switch to change the output voltage mode from HIGH (±150V) to   LOW (±75V) or vice versa. The LED lights up in HIGH voltage mode. Switch only when output is in idle  state, e.g. deactivated, for amplifier board firmware V1-05 or lower.

[9]:   PROTECTION Lights up continuously at an overtemperature, flashes slowly (1 Hz) when exceeding maxi mum current limit or permissible power loss, and flashes quickly (3 Hz) at a hardware defect.

[10]   READY Lights up permanently when the amplifier is ready for operation

应用：

1、高频磁性材料损耗分析

2、感性或容性负载的高频性能测试
